Q-SERIES FLOW SWITCHES

Q-Series Flow Switches
Model Q-12
  • 0.7 GPM & up
  • Pipe Sizes ¾” & up
  • Process Connection 1/2" or 3/4"
  • 200 psig
  • Max Temp. 180˚F/200˚F
  • Noryl, Fortron, 316 SS, Hastelloy C
MODEL Q-10N
  • 1 GPM & up
  • Pipe Sizes 1” & up
  • Process Connection 1"
  • 200 psig
  • Max Temp. 180˚F/200˚F
  • Noryl, Fortron, 316 SS, Hastelloy C
  • Pipe Size 1" and up
Model Q-8
  • 6 GPM & up - adjustable
  • Pipe Size 1” & up
  • 100 psig
  • Max Temp. 180˚F
  • Noryl (PPO), Fortron, 316 SS, EPDM
  • NEMA 6
MODEL Q-8DS
  • 6 GPM & up - not adjustable
  • Pipe Size 1” & up
  • 100 psig
  • Max Temp. 180˚F
  • Noryl (PPO), Fortron, 316 SS, EPDM
  • NEMA 6
  • 220 Volt DPDT
MODEL Q-5
  • 5 GPM & up
  • Pipe Sizes 1” & up
  • 300 psig
  • Max Temp. 180˚F
  • Brass, Stainless
  • 15 Amp
  • NEMA 4

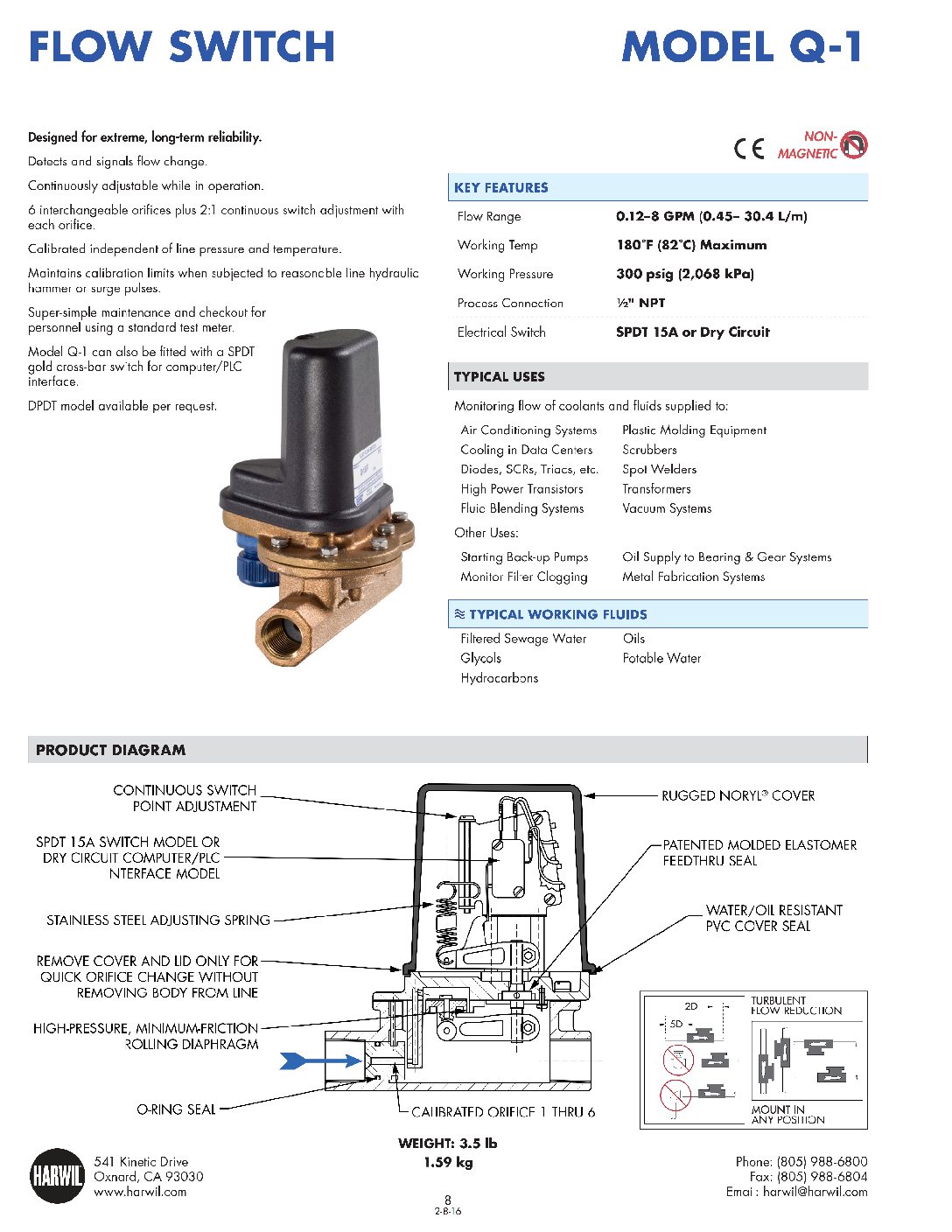

MODEL Q-1
  • 0.12 to 8.0 GPM
  • Pipe Size: ½” NPT
  • 300 psig
  • Max Temp. 180˚F
  • Brass, Stainless
  • 15 Amp
  • NEMA 4
MODEL Q-4E
  • 4 to 70 GPM
  • Pipe Size 1″ NPT
  • 300 psig
  • Max Temp. 180˚F
  • Brass, Stainless
  • 15 Amp
  • NEMA 4
MODEL Q-16
  • 4 to 500 GPM
  • Pipe Size 1″ – 8″
  • 200 psig
  • Max Temp. 250˚F
  • Brass, Stainless, EPDM
  • NEMA 1
  • Tested to UL 508 & 353 by ETL
  • Replaces Most Paddle Switches
